Tuesday 15 March 2016

Turning lace patterns upside down

This post isn't news to the knitting world, but since there seems to be quite a bit of confusion about it on forums when you google "knit lace pattern upside down" or somesuch, I thought it was worth a post.

Lets say (like me) you want to knit a seamless cardigan from the top down, but you want to include an all-over lace pattern.  Most lace charts are written bottom-up, at least in the stitch-dictionary on my shelf.  Maybe instead you are knitting a lace scarf and don't want to knit two shorter ones with a graft in the middle.  What to do?

Some A lot of posts on forums breezily suggest "just turn the chart upside down and replace decreases by increases!"  Don't listen to them, my friends.  While this may work for some lace patterns, it won't work for all.  And it may well look different from the lace knitted right-way-up, so I wouldn't try to match the two.

It is true you can expend a lot of brainpower and swatching time to devise an upside-down chart that retains most of the design features of the original pattern, but it might well not look the same in some key features.  There's a reason to graft your scarf in the middle!

Here comes an example:



This cute pattern of three holes is called "little flowers" in my stitch dictionary, or perhaps it's really little hearts.  Either way, it's cuter this way up than inverted ("little stack of bowling balls"?)  The chart is thusly:



Knitted bottom-up, you make the middle yarn-over (yo) on row 1, then the two yo on the next knit row 3.

Now turn the chart upside down.  You will make the two yo as your first pattern row - you can either make the decreases outside them, or switch to one centred double decrease in the middle.  By the issue comes when it's time to stack that last yo symmetrically on top of and between the lower pair.  There's a single stitch where we want our yo to go.  Where to put it?


The most obvious is to k2tog before the yo, or else yo then ssk.  Both these options lead to a "fat" bit between two of the holes, one side or the other, depending on which side you "got rid" of that central stitch to.  For clearer diagrams of this effect and how you can use it to make deliberate lace patterns, see here.

Here's my swatch:


Looking at the swatch above, the lowest motif is the original lace pattern worked from bottom up.  The next one up is the chart knitted upside down with a centred double decrease between the two yarn-overs.  Note that the pattern is no longer symmetrical - there's a fat bit between the bottom right hole and the central hole on top, due to the ssk before the last yo on row 3.

How do we get rid of the fat bit?  I tried two options.  The top motif in my swatch is the following chart:


I make one extra stitch on the purl row 2 by purling into the front and back of the central stitch, then I get rid of it again by doing symmetrical decreases around my top yo on row 3.  Symmetry is restored, but the pattern is less delicate - instead of a little yarn twist between the holes, there are fat bits on both sides where stitches have been knitted together leaning in both directions.

The second motif down is a bizarre non-standard variation on this theme, where the top hole is created by making the central stitch on the purl row very loose*, then on row 3 knitting into both sides and the top to pull it open.  I don't recommend it, and it looks much the same as my other symmetrical option which is easier to describe and execute.

* Insert needle into stitch to be knitted, yarn round needle twice, pull through stitch.  Like making a yo part way through the stitch.

The essential difference is that stitches are shifted by 1/2 stitch knitting top-down relative to bottom-up.  Think about the shift in the peaks vs troughs in a wave, or the number of fingers on your hand vs. gaps between them.  So, there's no easy way I can think of to exactly replicate the effect of knitting bottom-up while knitting top down.

In summary, I will be knitting my lace cardigan bottom-up with the original chart.

Friday 11 March 2016

Socksssss


Going back in time a little bit here, because I never posted the BEST SOCKS EVAR (capslock totally necessary).  Knitted toe-up, two at a time with Trailing Clouds Nimbus Self Striping Sock, in colourway "Mind the Gap".  Ravelry project page here.


There is nothing better than socks in the colour of the London Tube lines.  This yarn is the BEST.

Tuesday 8 March 2016

Advent Calendars in March


Patting myself on the back for this one - I finished the second Advent Calendar (see here for the first one), even though I totally didn't want to.  But I wouldn't want to do it any the more for leaving it until November so YAY me - made room in the diary for more Christmas Crafting later in 2016!

Monday 29 February 2016

Inside Nellie

Disclaimer:

I don't know how much terminology is common between knitting machines, and I don't know how much terminology is familiar to machine knitters.  However, I hope this post might be useful to you if you are sitting with a Toyota Elena Auto 7 (Toyota K747) knitting machine and you're thinking of taking it apart.  Sorry if the terminology is odd or unfamiliar, I only know what words are in the service manual.  I have never machine knitted in my life yet (I had to fix my machine before I could begin), so sorry if I am aiming the technical talk too high or low.

Getting to the mechanisms


Main body of machine lifted out of casing

The first thing we did was take the sponge bar out, ready to later strip and replace the sponge with two layers of 9mm draft excluder (thanks ebay) and a layer of fusible interfacing (better sponge/interfacing combo yet to be purchased).

Then we removed the screws in the blue casing (as indicated in service manual) and eased the main machine out of the casing.  You can see this stage in the above picture - the casing is sitting behind the bottle of Meths and has become a dumping ground for space screws and notes.  The refurbished sponge bar is sitting in front of the machine.

The next stage was to remove the rest of the blue/cream plastic casing from the top of the machine.  The service manual gives screw locations for this, some of which are hidden underneath the knobs if I remember correctly.

Needle selection mechanism

The needle selection mechanism is revealed.  The blue "S" levers can be actuated by hand or by punch-card, and the red "J" lever can be used to choose between these options or reset the S levers.  More of this later.  There are some white cogs visible around where the knobs were - the leftmost winds the punch-card in, and the right "zig-zag" knob sets the position of the 12-stitch pattern relative to the central needle.  Rotating this moves the entire top mechanism (pattern board?) along relative to the needle bed.

It turns out there is a little bell underneath the zig-zag knob that rings when you've moved the needle selector (by applying wrench under front left of machine).  Obviously this charming "feature" wasn't working for us until after the overhaul because the whole machine was seized.  It's not working any more either, because I shoved some sponge inside the bell so that I can stealth-knit when the children are asleep.

Underneath the machine


Flipping the machine over, you need to be careful not to damage the needles, so best have them hanging over the edge of the table, or removed (as we did).



On the bottom, you can see a variety of plates which I'm going to do my best to describe.  The biggest pair of plates are named "J installing boards" or somesuch (the manual refers to them by more than one name), while the next biggest pair are the "S installing boards".  I think the names may derive from the shape of the linkages attached to them, if that helps you to remember while reading the manual.

Anyways, all the plates are bolted to the underside of the needle bed joint plate at the front of the machine, and have linkages with cams that work into slots on the "working board" - a metal bar that runs the length of the needle bed and moves back/forth and side to side as the needle selector is actuated.  The working board has a big spring that attaches it to one side of the machine (bottom right corner of picture below).

The J installing boards have their back end bolted to one of the two long metal plates that support all the pattern selector levers and gubbins ("J feed plate" and "J pedestal plate").  The S installing boards have their back end bolted to the "S rest plate", which on the other side has a bunch of black notched plates, named "S pattern plates" or "S boards" or something (the names get a bit confusing).  There are a bunch of other smaller plates to set working distances and keep it all square.

How it works


Here is (approximately) how it works.  The needles are selected by your fingers on the blue S-levers, or by the punchcard which also flicks those blue levers.  The levers have little legs underneath which sit astride some rods (the "S rods" or something).  The clever stuff happens when you actuate the big "needle selection mechanism" lever with a wrench on the bottom left of the machine.  When selected, the lever engages with the rod below it and flicks it to the side, which flicks up the corresponding S board (with the notches on top).  The S boards are then moved toward the needles, and the ones that have been selected (moved up in their mount by the rod) push on the needles, moving them to the appropriate position.  Ta-dah!

The S/J lever mechanism has been removed here, and you can see the S-rods poking through the S boards.
There are 23 S-rods, to account for the full range of pattern positioning (only 12 of these are aligned with the 12 S-levers at any time, dependent on the zig-zag dial setting.  There are a bunch of tiny springs on half of them.

S pattern plates / S boards or whatever they're called
Here follows a little sequence of images as the needle selection lever is progressively moved.

1.  Not yet moved

2.  J feed plate moves forward (left hand side) and engages S levers with S rods, selecting the S boards

3.  S rest plate and all S boards move forward and select needles

Cleaning


We took apart every single thing except the black stack of S-boards and the armature pivots that had been riveted.  Everything was cleaned with auto degreaser and re-lubricated with lithium grease.  There are a LOT of contact surfaces, so thoroughness is key because little bits of friction can add up.  If you look carefully at the photos you can see my scribblings where I used permanent marker to label the pieces with their names and mark positions.  I also scribed important location marks into the metal with a knife as auto degreaser removes the pen and basically everything including all the moisture in my palms.  (Dammit.)

If you use blu-tak to secure each screw you remove near the hole it came out of, then you can even get the whole thing back together again without losing a screw.  Except the one that gets blu-taked to your sleeve accidentally, but don't worry, that one gets found safely on your arm when you go the computer to look for a replacement on eBay, so you never have to press "buy" ;-)


As you can imagine, most of the yarn-related fluff is under the needle bed.  You can get all the needle springs out to clean in here.  There are a reasonable number of screws, but it's not that tricky once you're in there.  Also, the needle bed joint plate has a bunch of fluff inside, and you have to carefully peel off the needle numbers from the other side to get to the bolt-heads so you can steady them while you undo the nuts on the underside.  You'll need double-sided tape when you reassemble this bit (the sinker comb is 100 individual 2-prong pieces), plus some spray-adhesive for putting the numbers back on again (for heavens sake, spray the adhesive on the number strip underside NOT onto the machine needle bed!!!)

The trickiest parts were:
1.  Guiding the S rods back through the S boards (start at one end, with the rods angled slightly, and align each one in turn as you bring the parts parallel again).  It's a two-man job, unless you build yourself a jig like the one they have in the manual.
2.  Getting the little springs back on underneath the S lever mechanism.  I used button-thread to pull them through and ease them on.

If you are reading this because you have your Toyota K747 in bits all over your table: good luck!  I wonder if this post will prove to be as dull as I anticipate, or unexpectedly popular?  After all, my most visited page on my last blog concerns repairing washing machine tachometers, and it's proved a hard post to beat in terms of viewing numbers :-S

Saturday 9 January 2016

I promised photos of the insides

Knitting Nellie is now in bits; there must be over 1000 and we've not even tackled the carriage(s) yet.  Behold: the main body of the machine is in pieces.


Mr B has cleaned all 200 needles (because he's a legend) and together we've probably made it through half of the machine insides so far.  Just the J-linkage system to go (the bit with all the needle selector levers and punch card feeder).  Some of the linkages we've cleaned so far have been completely seized solid - no wonder the needle selection lever wouldn't move!  The old lubricants have gone solid with age and dirt and need to be cleaned away and replaced with new grease.

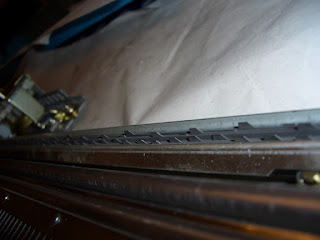

In this photo you can see that the sinker comb is made from 100 double-prongs stuck to the brown double-sided tape.  Also, check out that fluff accumulation!  No regrets about taking this to bits so far.  Actually, it's pretty enjoyable.  This machine is an incredible creation.

Knitting machine with a beard.
My new double-sided carpet tape has arrived which means we can put the sinker comb back together and start putting bolting the bits back onto the needle bed!  I can't wait!

Sunday 3 January 2016

Knitting Nellie!

Father Christmas brought me something special last year!  A few days before Christmas, I took the boys to collect a wonderful new toy from a very kind lady who was giving away her late mother's knitting machine.  I am very grateful indeed for her kindness, and I only hope I can live up to the previous owner's skills.  I have zero machine knitting experience to my name so far, but my aim is fair-isle Christmas jumpers for the boys by the end of 2016.  I've got 12 months.

This is knitting Nellie!


It's a Toyota K747 punch-card knitter with lace carriage, intarsia carriage, knit tracer and a bunch of manuals.  Also blank punchcards!  Very exciting!


It also comes with a marvellous range of 1980s pattern books, which I am very excited to dip into and make the boys wear!  Fair-isle dolly mixtures!  What more can I wish for?


Note the reindeer, centre bottom.  You're looking at my 2016 Christmas jumpers right there!

The knitting machine has sadly seized since its last use, so needs completely cleaning and re-oiling.  Fortunately both myself and my husband like to take things to bits, and this marvellous blogger has provided the full service manual online.  That shortens the take-to-bits time considerably by telling us the order to take the bolts out, and giving us a preview of the guts and how they work.  Mr B wants to call this a "re-build" to set expectations as to timescale (lengthy) and I suppose that's fair.

The sponge bar had degraded to such a sticky mess that the first job was to remove all 200 needles and use meths to remove the gunk stuck to them.  Mr B volunteered to do the lot (what a legend) in return for me sometimes letting him do the screwdriver bits... ha ha.

Anyway, the stage we're at currently is that the main body is out of the blue casework and I've labelled all the plates using a marker pen using the terms from the manual to help us in our quest.  Mr B has spent 3 hours cleaning needles and I've purchased 4 rolls of draft excluder to try as the replacement sponge.  Over the next few nights we'll be taking the main body to bits to get inside the needle bed where the rest of the decayed sponge bar has disintegrated.  Then we'll be exploring why the needle selector mechanism has seized.  Mr B has brought the lithium grease in from his garage as a mark of his commitment to the knitting cause.

Expect very little sewing or hand-knitting progress in the meantime, and potentially many photographs of knitting machine insides.  YaaaaAAAAAY!

Last on the list

I cast on for this little jumper the night before my planned C-section for Baby B.  Since I was scheduled last on the list, I figured I'd have lots of knitting time while waiting my turn and potentially being bumped for emergencies.  I needed something to distract me from my rumbling hungry tummy!

Anyway, I did get lots of knitting done before and after the birth, because Baby was an easy and sleepy little mite on the postnatal ward.


The yarn is WI branded (for what that's worth) and is a acrylic 4 ply and wonderfully soft.  There aren't too many acrylics I'm prepared to knit with and this is one of them.  I suspect it's a cousin of Patons Smoothie?


The pattern is "Beyond Puerperium" and my notes are here.  It ended up as a baby gift for my little niece.  Hope she likes it!

I crocheted the saturn V and I'm ambivalent about the result


For our WI's annual entry into the craft competition at the Fenland Fair, I was persuaded to crochet the Saturn V.  The pattern is pretty cool and so is the subject, but nevertheless I had a bad attitude to this project, probably because of the cheap acrylic yarn in my stash that had to be used.  My white yarn was so cheap that it showed the darker stranding inside it.  Also, crochet stitches don't align on top of each other like knitting ones do, rather they are shifted about 1/4st to the right.  Therefore, the vertical black blocks look like they are twisting clockwise around the rocket (they are).  No idea how the designer avoided this fate - vigorous blocking perhaps?

Anyway, it made it back to be stuffed wonkily into Baby B's toy bucket, to look comically bent at me whenever I see it.  Banana rocket.  At least that bit makes me smile.

Saturday 2 January 2016

I knitted a jumper very quickly

This jumper was finished in November last year, I'm behind on my posting!


In the search for yarn that's (a) cheap (b) soft (c) wears well, I recalled the Patons Smoothie DK that I remembered doing a baby jumper in.  Turns out the only reason it didn't pill was that baby grew out of it before it had been washed too much.  This jumper in the same yarn pilled pretty much straight away.  Boo hoo.


See my ravelry notes here, the pattern is the child's placket neck pullover, changed to be knitted top-down (instead of bottom up) and with a stripe pattern and colour based on someone else's project knitted to a different sweater pattern.


I should always do a tension swatch and this jumper is why.  Gah.  At least toddler big boy likes it, and the actual knitting went quite fast (at least, when it wasn't languishing on a shelf).  It's my third time to knit this jumper pattern, I still love it.  It's so easy to knit and wear.
